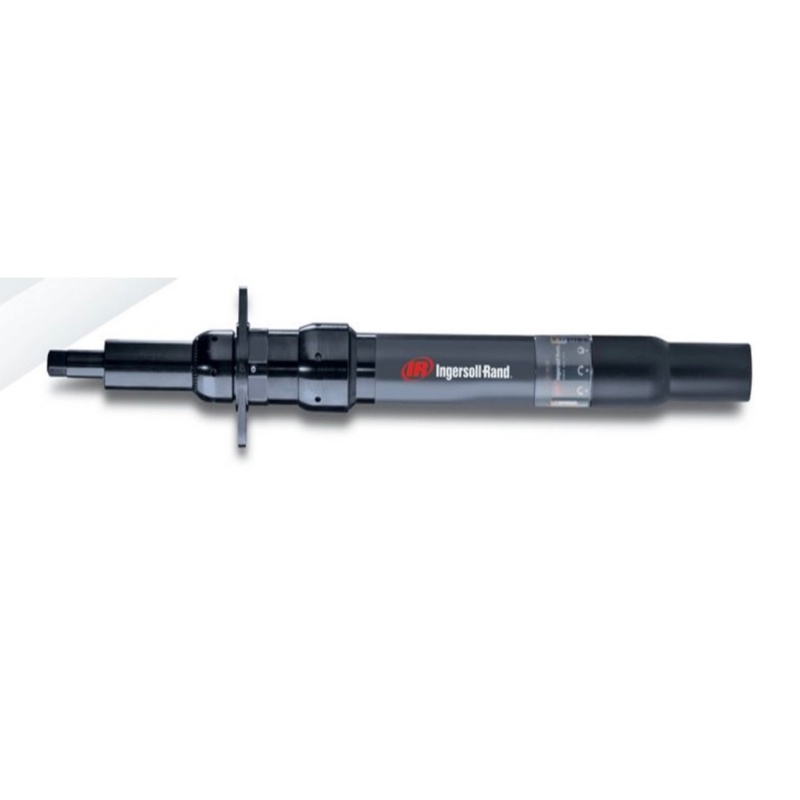

High-Speed QE8 Inline

QE8 Tools are Ergonomic, lightweight and high-speed, designed for Tough Applications. The QE8 Series provide superior accuracy and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 13 Nm to 400 Nm. Available in Inline and Angle Configuration.


QE8 Tools are Ergonomic, lightweight and high-speed, designed for Tough Applications. The QE8 Series provide superior accuracy and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 13 Nm to 400 Nm. Available in Inline and Angle Configuration.

Features

1.Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

2.Efficient:

Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

3.Reliable:

The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:



With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.


ModelTorque Range (Nm)Torque Range (in‑lbs)Torque Range (ft‑lbs)Max Torque (Nm)ActuationConfigurationFree Speed (rpm)Spindle Length (mm)Float (mm)Overall Length (mm)Length (in)Weight (kg)Weight (lbs)Drive
QE8ST055F41S0811.0 – 44.097.4 – 389.48.1 – 32.555Trigger StartInline1470102.720557.521.953.06.611/2 in. Square
QE8ST055F61S0811.0 – 44.097.4 – 389.48.1 – 32.555Trigger StartInline1470153.039608.323.953.16.831/2 in. Square
QE8ST055F81S0811.0 – 44.097.4 – 389.48.1 – 32.555Trigger StartInline1470204.039659.025.943.27.051/2 in. Square
QE8ST070F41S0814.0 – 56.0123.9 – 495.610.3 – 41.370Trigger StartInline1160102.720557.521.953.06.611/2 in. Square
QE8ST070F61S0814.0 – 56.0123.9 – 495.610.3 – 41.370Trigger StartInline1160153.039608.323.953.16.831/2 in. Square
QE8ST070F81S0814.0 – 56.0123.9 – 495.610.3 – 41.370Trigger StartInline1160204.039659.025.943.27.051/2 in. Square
QE8ST090F41S0818.0 – 72.0159.3 – 637.313.3 – 53.190Trigger StartInline900102.720557.521.953.06.611/2 in. Square
QE8ST090F61S0818.0 – 72.0159.3 – 637.313.3 – 53.190Trigger StartInline900153.039608.323.953.16.831/2 in. Square
QE8ST090F81S0818.0 – 72.0159.3 – 637.313.3 – 53.190Trigger StartInline900204.039659.025.943.27.051/2 in. Square
QE8ST150F41S0830.0 – 120.0265.5 – 1062.122.1 – 88.5150Trigger StartInline500102.720557.521.953.06.611/2 in. Square
QE8ST150F61S0830.0 – 120.0265.5 – 1062.122.1 – 88.5150Trigger StartInline500153.039608.323.953.16.831/2 in. Square
QE8ST150F81S0830.0 – 120.0265.5 – 1062.122.1 – 88.5150Trigger StartInline500204.039659.025.943.27.051/2 in. Square
QE8ST230F02S0846.0 – 184.0407.1 – 1628.533.9 – 135.7230Trigger StartInline340346.050827.032.565.712.571/2 in. Square
QE8ST230F02S1246.0 – 184.0407.1 – 1628.533.9 – 135.7230Trigger StartInline340346.050819.032.245.712.573/4 in. Square
QE8ST230F61S0846.0 – 184.0407.1 – 1628.533.9 – 135.7230Trigger StartInline340153.039725.028.545.512.131/2 in. Square
QE8ST230F62S1246.0 – 184.0407.1 – 1628.533.9 – 135.7230Trigger StartInline340244.650717.028.235.512.133/4 in. Square
QE8ST230F81S0846.0 – 184.0407.1 – 1628.533.9 – 135.7230Trigger StartInline340204.039776.030.555.612.351/2 in. Square
QE8ST230F82S1246.0 – 184.0407.1 – 1628.533.9 – 135.7230Trigger StartInline340295.450768.030.245.612.353/4 in. Square
