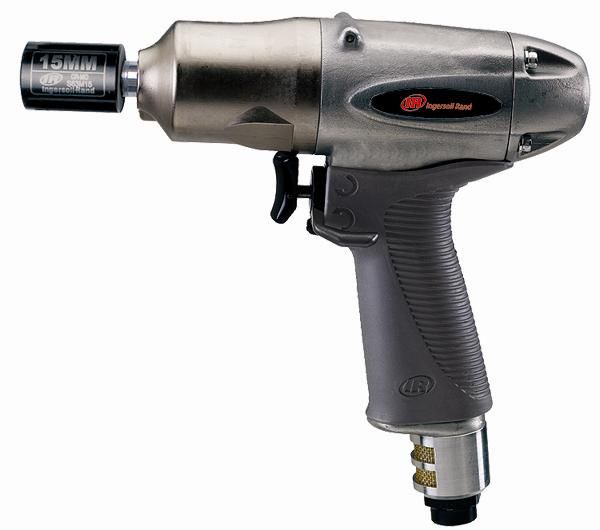

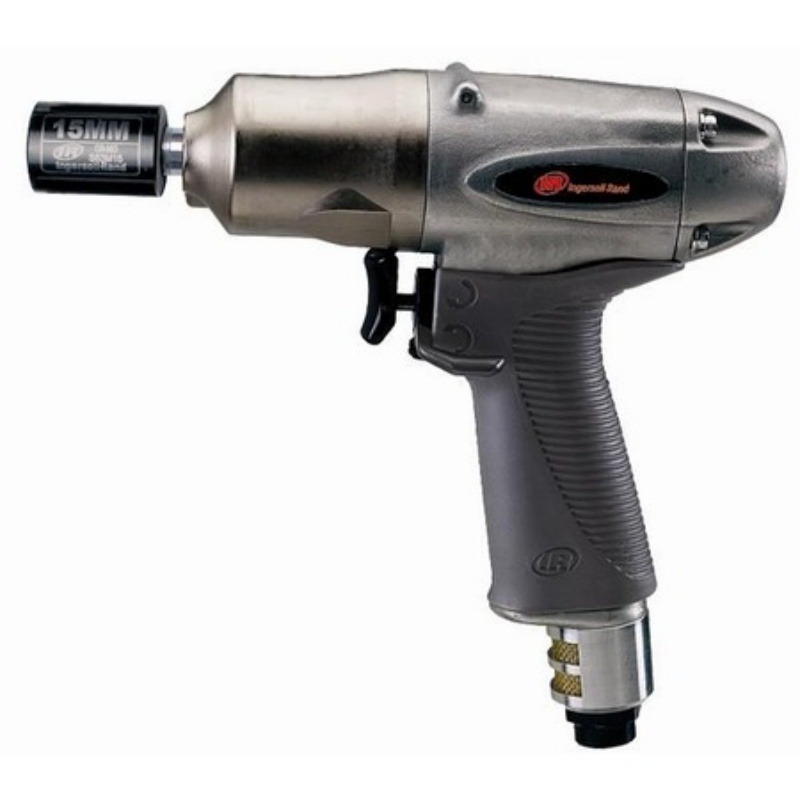

Shutoff Air Pulse Tools easy to handle 4,000 to 7,000 RPM
The Shutoff Pulse Tools are compact, with a lightweight design that makes them easy and comfortable to use all day long. These tools also come with an auto-shutoff feature that stops airflow to the tool when the cycle is complete, which limits air consumption and tool wear and deters early throttle release.
Ingersoll Rand offers a full line of transducerized and standard shutoff and non-shutoff pulse tools in pistol, angle and in-line configurations to meet your needs. These extremely lightweight, reactionless tools offer excellent power, speed, accuracy and ergonomics.
The Shutoff Pulse Tools are compact, with a lightweight design that makes them easy and comfortable to use all day long. These tools also come with an auto-shutoff feature that stops airflow to the tool when the cycle is complete, which limits air consumption and tool wear and deters early throttle release.
Comfortable
The Shutoff Pulse Tools offer an ergonomic, lightweight design that makes them easy to handle and increases operator comfort. Speedy
These tools provide an impressive 4,000 to 7,000 RPM. Durable
The Shutoff Pulse Tools offer high-speed, reactionless fastening to help you breeze through every job.
| Model | Configuration | Common Fastener Size | Torque Range (Nm) | Torque Range (ft-lb) | Free Speed (rpm) | Hard Slam Torque Range (Nm) | Soft Draw Torque Range (Nm) | Weight (kg) |
| QS110P4 | Pistol | M10 - M12 | 50-85 | 37-64 | 5800 | NA | NA | 1.51 |
| QS120P4 | Pistol | M12 | 70-115 | 52-85 | 5400 | NA | NA | 1.8 |
| QS140P4 | Pistol | M14 | 110-150 | 81-111 | 5200 | NA | NA | 3 |
| QS150P6 | Pistol | M16 | 77-177 | 103-155 | 4400 | NA | NA | 0.95 |
| QS50P3 | Pistol | M5 | 4.5-8 | 3-6 | 4300 | NA | NA | 0.95 |
| QS50PQ1 | Pistol | M5 | 4.5-8 | 3-6 | 4300 | NA | NA | 1.1 |
| QS60P3 | Pistol | M6 | 7-15.5 | 5.1-11.4 | 5300 | NA | NA | 1 |
| QS60PQ1 | Pistol | M6 | 6-13 | 4.4-9.6 | 5300 | NA | NA | 1.1 |
| QS70P3 | Pistol | M6-M8 | 15-32 | 11.1-23.6 | 6800 | NA | NA | 1.1 |
| QS70PQ1 | Pistol | M6-M8 | 13-28 | 9.6-20.7 | 6800 | NA | NA | 1.1 |

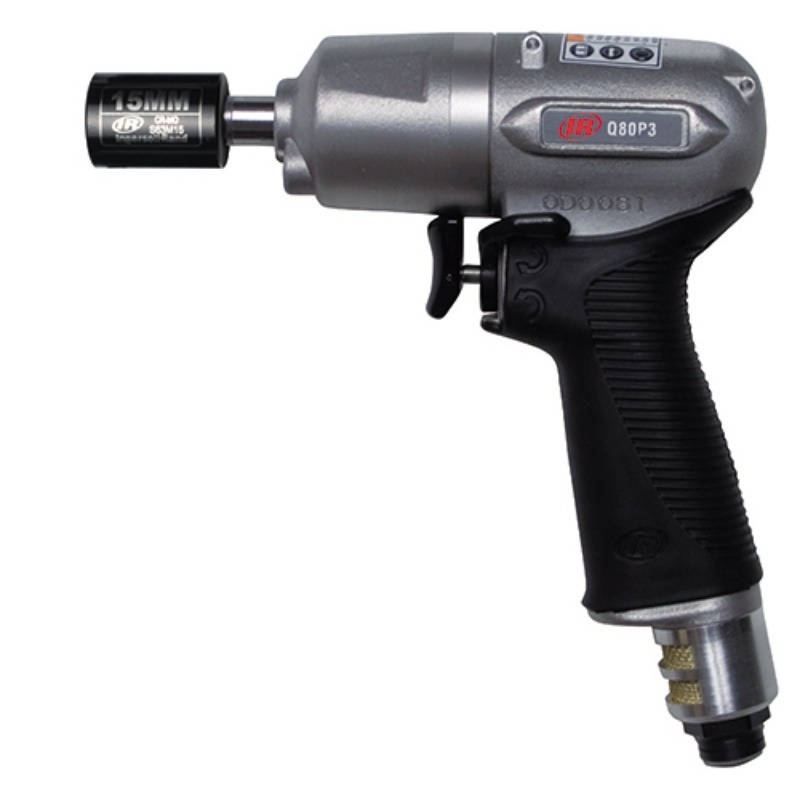

| QS80P3 | Pistol | M8 | 30-55 | 22.1-40.6 | 6800 | NA | NA | 1.1 |
| Model | Length (mm) | Length (in) | Side to Center (mm) | Side to Center (in) | Drive Size/Style | Air Consumption (cfm) |
| QS110P4 | 194 | 7.6 | 57 | 2.2 | 1/2 in. Square | 17.7 |
| QS120P4 | 194 | 7.6 | 57 | 2.2 | 1/2 in. Square | 18.4 |
| QS140P4 | 201 | 7.9 | 62 | 2.4 | 1/2 in. Square | 25 |
| QS150P6 | 237 | 9.3 | 39 | 1.5 | 3/4 in. Square | 25 |
| QS50P3 | 164 | 6.5 | 23 | 0.9 | 3/8 in. Square | 8.9 |
| QS50PQ1 | 164 | 6.5 | 23 | 0.9 | 1/4 in. Quick Change | 8.9 |
| QS60P3 | 164 | 6.5 | 23 | 0.9 | 3/8 in. Square | 12 |
| QS60PQ1 | 164 | 6.5 | 23 | 0.9 | 1/4 in. Quick Change | 12 |
| QS70P3 | 177 | 7 | 23 | 0.9 | 3/8 in. Square | 12 |
| QS70PQ1 | 177 | 7 | 23 | 0.9 | 1/4 in. Quick Change | 13 |
| QS80P3 | 187 | 7.4 | 25.4 | 1 | 3/8 in. Square | 16 |
