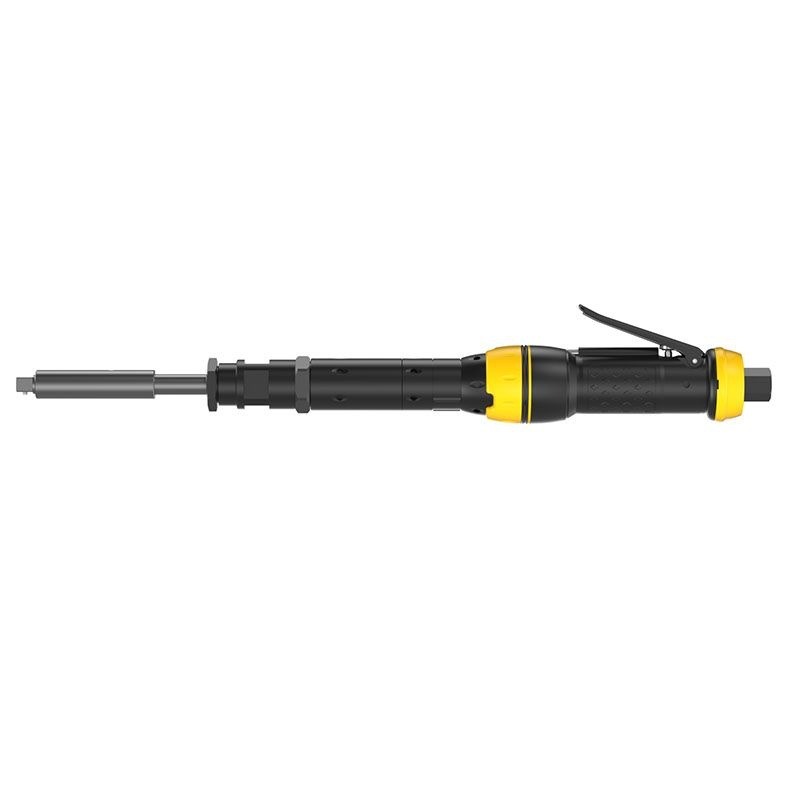

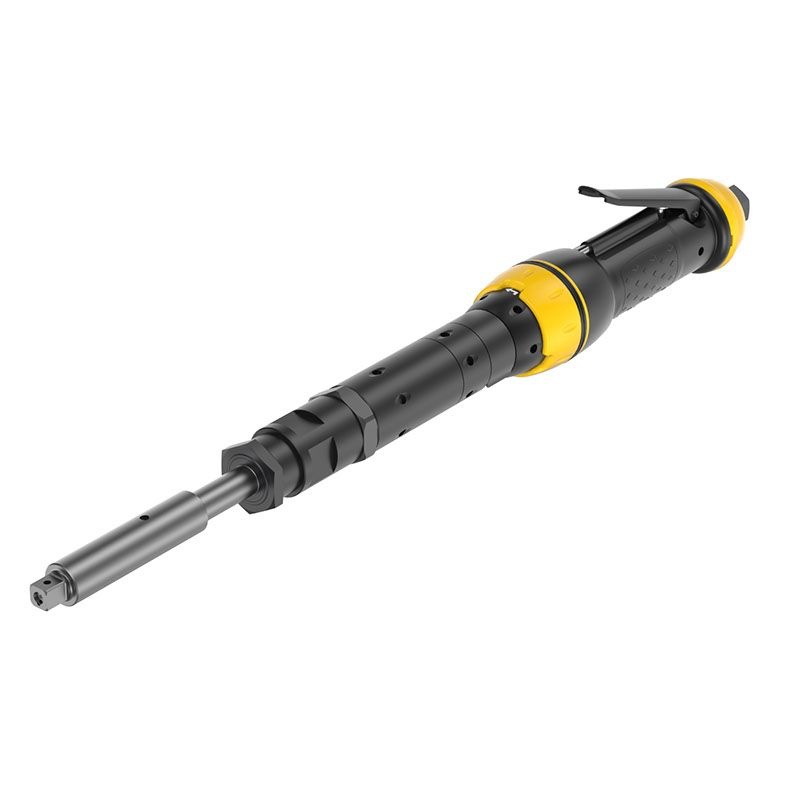

Straight Nutrunner LTD LTD29-2 R18-10 8431063810
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
- Product Details
- Technical Specification
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Features：
Powerful motor
High torque accuracy
Smooth and simple design of multiple spindles
Air signal outlets for completed operation
Benefits：
Fast rundown saves time
High productivity and unmatched accuracy
Torque independent of air pressure
Easy to use for fixtured applications
| Technical Specifications | |
| Imperial Metric | Dimension & weight |
| Dimension & weight | |
| Air inlet thread | 1/4 in |
| Bolt size | M6 mm |
| CS distance | 19 mm |
| Length | 466 mm |
| Output size | 3/8" |
| Recommended hose size | 10 mm |
| Square drive | 3/8 in |
| Weight | 2 kg |
| Certifications, standards & directives | |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Torque | |
| Max torque at 6.3 bar | 14 ft-lb |
| Min torque at 6.3 bar soft joint | 7 ft-lb |
| Torque range max | 13 ft-lb |
| Torque range min | 7 ft-lb |
| Design & Functions | |
| Model type | Straight |
| Output type | Square, Male |
| Reversible | Yes |
| SCIP | 261b9caa-1fca-4e49-a582-9915b8a5c12d |
| Shut-off | Yes |
| Spline/Wave type | 1 |
| Air information | |
| Air consumption at free speed | 21 cfm |
| Max working pressure | 100 psi |
| Noise & vibrations | |
| Sound power | 91 dB(A) |
| Sound pressure | 80 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Speed | |
| Free speed |
