105 Series Mini Air Ratchet Wrench

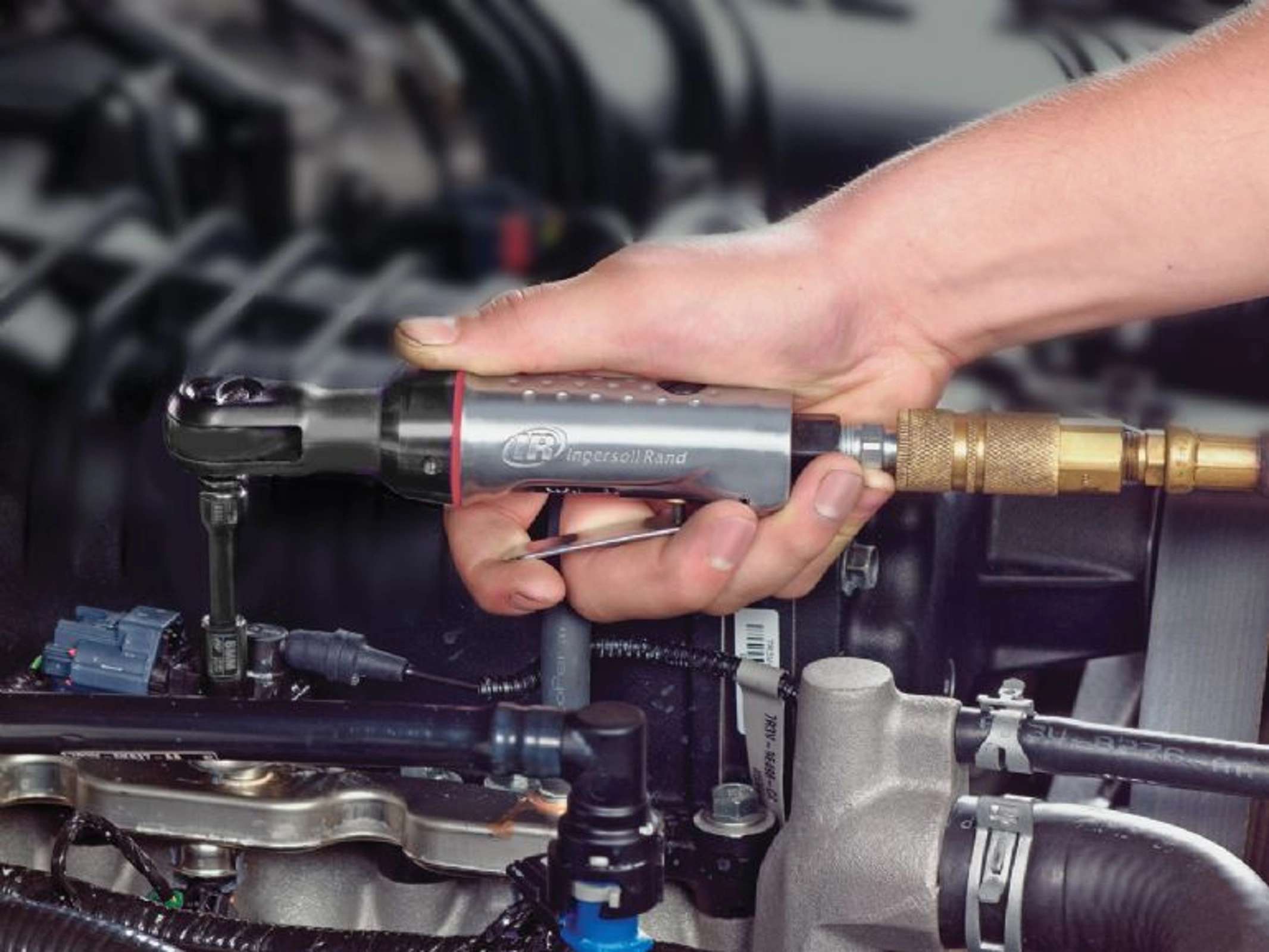

The 105 Series air ratchets are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.
- Product Details
- Technical Specification

The 105 Series air ratchets are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.

Features
1.Power & Speed:
With 34 NM max torque and 280 rpm free speed, you can count on the 105 Series to deliver impressive power.
2.Access & Reach:
The 105 Series mini ratchet wrenches are small and nimble enough to tackle jobs in both tight and hard to reach places.
3.Durable:
With an aluminum housing and steel head construction, the 105 Series has improved durability and consistent performance.
4.Increased Safety:
The ball dent anvil found on each member of the 105 Series provides a more secure link to the socket, increasing operator safety.
Model | Drive Size (in) | Switch Type (actuation) | Free Speed (rpm) | Recomm. Torque Range (ft-lb) | Recomm. Torque Range (Nm) | Max Torque (ft-lb) | Max Torque (Nm) | Free Speed Sound Level (dBA) | Vibration Level m/s2 (K) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Average Air Consumption (cfm) | Average Air Consumption (L/min) | Free Speed Air Consumption (cfm) | Free Speed Air Consumption (L/min) | Air Inlet NPTF (in) | Min Hose Size (in) | Min Hose Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
105-D2 | 1/4 | Lever actuation; variable speed | 250 | 5-20 | 7-27 | 25 | 34 | 81.8 | 5.1 (0.9) | 1.4 | 0.64 | 7.3 | 186 | 3 | 85 | 18 | 510 | 1/4 | 3/8 | 10 |
105-D3 | 3/8 | Lever actuation; variable speed | 250 | 5-20 | 7-27 | 25 | 34 | 81.8 | 5.1 (0.9) | 1.4 | 0.64 | 7.3 | 186 | 3 | 85 | 18 | 510 | 1/4 | 3/8 | 10 |
105-L2 | 1/4 | Lever actuation; variable speed | 250 | 5-20 | 7-27 | 25 | 34 | 81.6 | 3.7 (0.9) | 1.56 | 0.71 | 8.41 | 214 | 3 | 85 | 18 | 510 | 1/4 | 3/8 | 10 |
