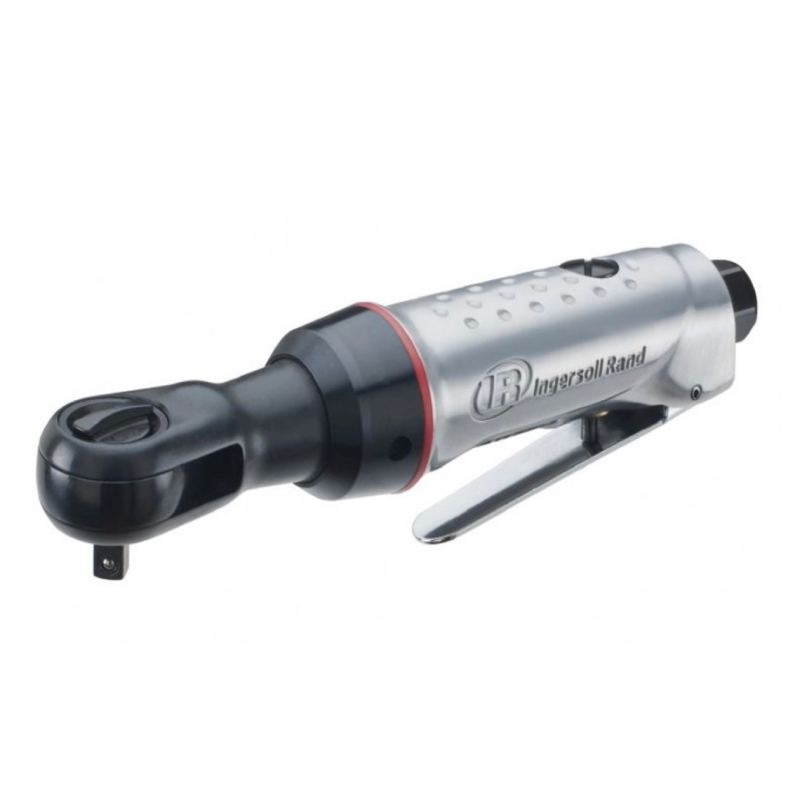

107XPA & 1077XPA Standard Air Ratchet Wrench
The Ingersoll Rand 107XPA and 1077XPA Series ratchet offer professional technicians performance and comfort with great value for money. The advanced head design provides increased durability to one of the industry’s most popular ratchets.
- Product Details
- Technical Specification
The Ingersoll Rand 107XPA and 1077XPA Series ratchet offer professional technicians performance and comfort with great value for money. The advanced head design provides increased durability to one of the industry’s most popular ratchets.
Features：
1.360-Degree Exhaust:
The 360-degree exhaust capabilities of the 107XPA and 1077XPA standard ratchet wrenches direct exhaust away from the operator, ensuring a better workspace.
2.Increased Control:
The power regulator you’ll find on these two ratchet wrenches provides increased control on every job.
Access Hard to Reach Spaces: With greater access and reach, you can more easily work in deep, hard to reach areas.
3.Durability:
Heat-treated head provides exceptional durability. You can expect your tools to continuously exceed your expectations.
Model | Drive Size (in) | Switch Type (actuation) | Free Speed (rpm) | Recomm. Torque Range (ft-lb) | Recomm. Torque Range (Nm) | Max Torque (ft-lb) | Max Torque (Nm) | Free Speed Sound Level (dBA) | Vibration Level m/s2 (K) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Average Air Consumption (cfm) | Average Air Consumption (L/min) | Free Speed Air Consumption (cfm) | Free Speed Air Consumption (L/min) | Air Inlet NPTF (in) | Min Hose Size (in) | Min Hose Size (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1077XPA | 1/2 | Lever actuation; variable speed | 160 | 10-45 | 14-61 | 54 | 73 | 94.4 | 2.4 (0.7) | 2.75 | 1.25 | 11 | 279 | 4 | 113 | 19 | 530 | 1/4 | 3/8 | 10 | |
107XPA | 3/8 | Lever actuation; variable speed | 160 | 10-45 | 14-61 | 54 | 73 | 94.4 | 2.4 (0.7) | 2.75 | 1.25 | 11 | 279 | 4 | 113 | 19 | 530 | 1/4 | 3/8 | 10 |
