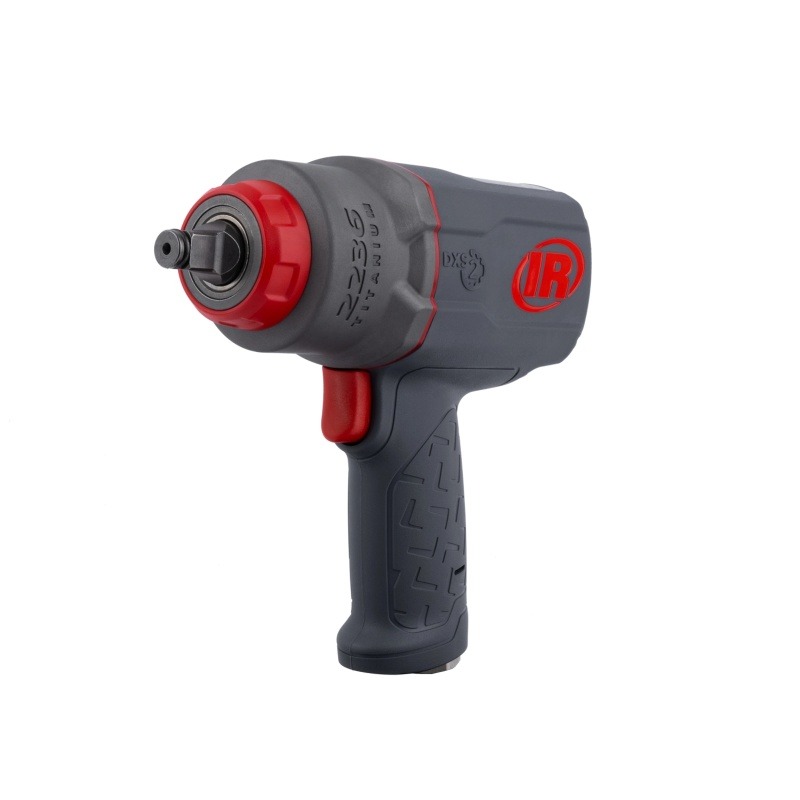

2236QTiMAX Series DXS® 1/2″ Air Impact Wrench
Meet the 2236 ½” pneumatic impact wrench. Our patented Drive Xchange System™ lets you swap out anvils without torque-draining adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians.
- Product Details
- Technical Specification

Meet the 2236 ½” pneumatic impact wrench. Our patented Drive Xchange System™ lets you swap out anvils without torque-draining adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians.

Features
1.VERSATILITY:
Versatility meets power in the new Ingersoll Rand 1/2" pneumatic impact wrench. The pending -patented Drive Xchange System™ lets you switch out anvils without clunky adapters that drain your tool’s power.
2.INNOVATION:
With 10 different available drive options including 3/8", 1/2", and 3/4" standard length and five extended lengths from 2 to 10 inches, you can do more work with less equipment.
3.TORQUE:
The 2236 series impact wrench operates powerfully with 1,500 ft-lbs of breakaway torque – 200 more ft-lbs than its predecessor.
4.DURABLE:
Thanks to a patent-pending 2-piece anvil system, you can directly grease the tool’s hammers for increased run time. The iconic titanium hammer case returns in the 2236 series for more unyielding durability.
5.STRENGTH:
A patented-pending increased dwell motor gives the tool more airflow and raw power.
6.QUIET:
A new airflow path design helps make this impact wrench 4 decibels quieter from a patented motor design.
Model | Configuration | Actuation | Drive Size (in) | Drive Type | Breakaway Torque ft-lb (Nm) | Max Reverse Torque ft-lb (Nm) | Blows per Minute | Max Free Speed (RPM) | Impacting Sound Level dB(A) (pressure/power) | Weight lbs (kg) | Length in (mm) | Air Inlet NPT (in) | Min Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2236QTIMAX | Pistol | Trigger | 1/2 | Square | 1500 (2034) | 1000 (1356) | 1350 | 7500 | 94.2 | 4.4 (1.99) | 7.36 (187) | 1/4 | 3/8 (10) |
2236QTIMAX-2 | Pistol | Trigger | 1/2 | Square | 1500 (2034) | 1000 (1356) | 1350 | 7500 | 94.2 | 4.6 (2.1) | 9.37 (238) | 1/4 | 3/8 (10) |
2236QPTIMAX | Pistol | Trigger | 1/2 | Square | 1500 (2034) | 1000 (1356) | 1350 | 7500 | 94.2 | 4.4 (1.99) | 7.36 (187) | 1/4 | 3/8 (10) |
