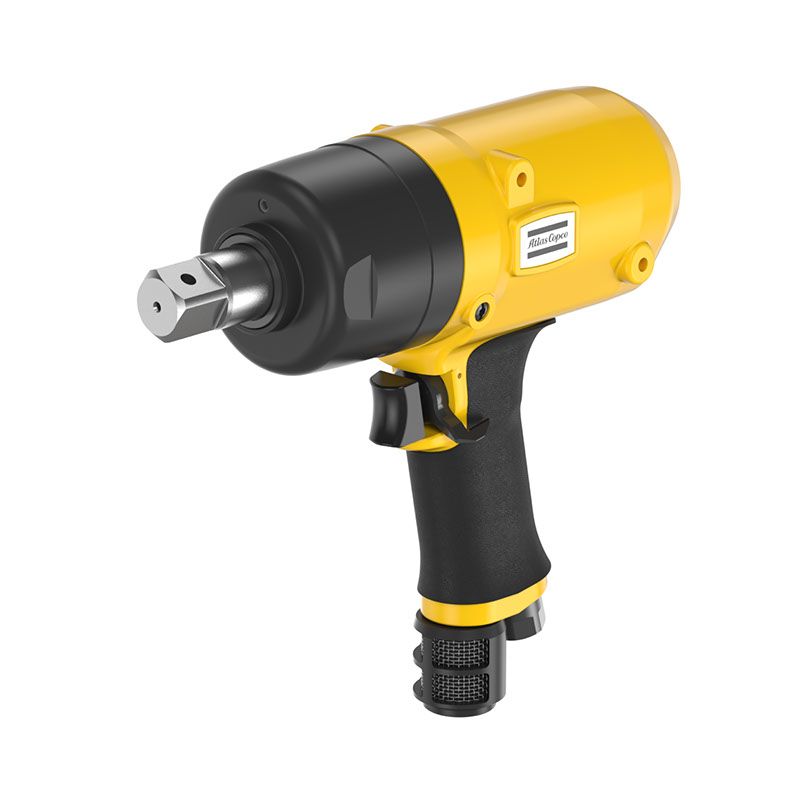

Pistol ErgoPulse XSEP16XS HR20 8431037156
Atlas Copco’s non shut-off tool Pistol ErgoPulse XS is the ideal choice when the operator needs to control the process. The tool is optimized to provide high torque, fast and accurate tightening as well as an extremely long service life. Its twin chamber motor is designed to give high torque at low speed, which provides the best characteristics for fast, reliable and accurate tightening.
- Product Details
- Technical Specification
Atlas Copco’s non shut-off tool Pistol ErgoPulse XS is the ideal choice when the operator needs to control the process. The tool is optimized to provide high torque, fast and accurate tightening as well as an extremely long service life. Its twin chamber motor is designed to give high torque at low speed, which provides the best characteristics for fast, reliable and accurate tightening.
Features
High power-to-weight ratio
One handed operation
Double or triple bladed pulse mechanisms
Pulse units with two or three blades
No springs to wear out
High precision components
Lubrication free
Benefits：
Enhanced productivity
Reliable and fast
Short cycle times
Excellent durability
Low noise levels
| Technical Specifications | |
| Imperial Metric | Dimension & weight |
| Dimension & weight | |
| Air inlet thread | 3/8 in |
| Bolt size | M16 mm |
| CS distance | 36.5 mm |
| Length | 226 mm |
| Output size | 3/4" |
| Recommended hose size | 13 mm |
| Square drive | 3/4 in |
| Weight | 6.6 lb |
| Certifications, standards & directives | |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (MD) |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Torque | |
| Fixed transducer torque CCW service | 260 Nm |
| Torque range max | 178 ft-lb |
| Torque range min | 111 ft-lb |
| Design & Functions | |
| Model type | Pistol |
| Output type | Square, Male |
| Pulsing freq. CCW | 10-17 Hz |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | No |
| Noise & vibrations | |
| Sound power | 100 dB(A) |
| Sound pressure | 89 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 1.2 m/s² |
| Vibration value | 5.5 m/s² |
| Speed | |
| Free speed | 4200 r/min |
| Air information | |
| Air consumption at free speed | 33 cfm |
| Max working pressure | 100 psi |
| Nominal working pressure | 91 psi |
| Capacity | |
| Oil volume in full Pulse unit | 35 ml |
