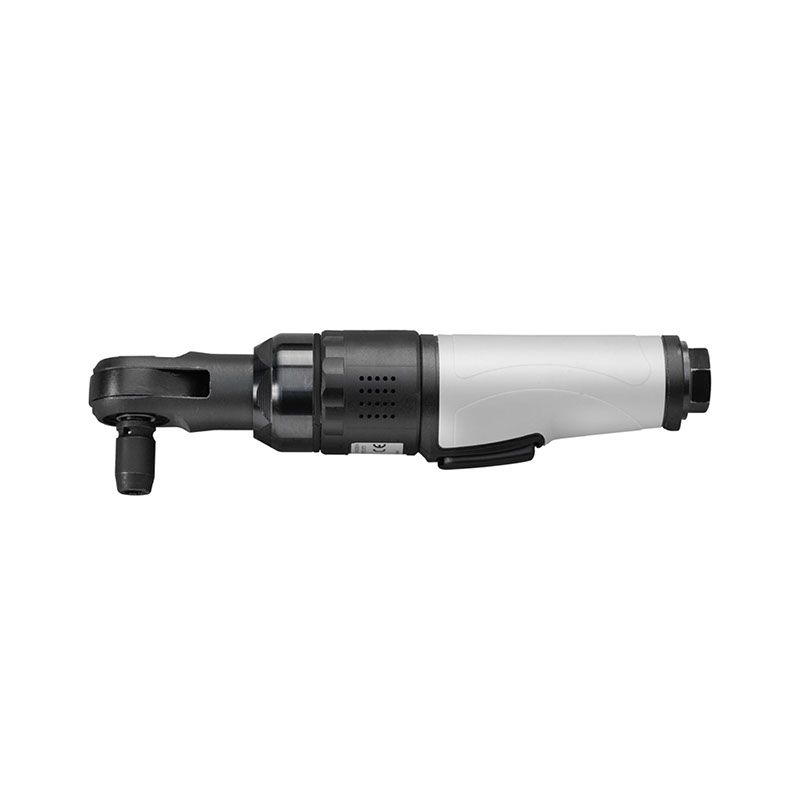

Pneumatic Ratchet (PRO)W2610 8431035010
Atlas Copco PRO Ratchet Wrench W26 is powerful, reversible and designed for easy access in confined spaces. It is a lightweight tool with composite housings, ideal for automotive repair, heavy equipment maintenance, product assembly, construction projects, or any other application requiring high torque output. The variable, feather-touch trigger puts you in full control and switching from forward to reverse couldn’t be simpler.
- Product Details
- Technical Specification

Atlas Copco PRO Ratchet Wrench W26 is powerful, reversible and designed for easy access in confined spaces. It is a lightweight tool with composite housings, ideal for automotive repair, heavy equipment maintenance, product assembly, construction projects, or any other application requiring high torque output. The variable, feather-touch trigger puts you in full control and switching from forward to reverse couldn’t be simpler.

Features:
High power-to-weight ratio
Robust composite housing
Rubber grip on handle
Easy to switch between forward and reverse
Air exhaust adjustable through 360 degrees
Benefits:
Durable
Easy access in confined spaces
Long working lifetime
| Technical Specifications | |
| Imperial Metric | Dimension & weight |
| Dimension & weight | |
| Air inlet thread | 1/4 in |
| Bolt size min | 8 mm |
| Length | 192 mm |
| Recommended hose size | 10 mm |
| Square drive size | 3/8 in |
| Weight | 0.55 kg |
| Certifications, standards & directives | |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (MD) |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Torque | |
| Torque range max | 40 Nm |
| Torque range min | 4 Nm |
| Design & Functions | |
| PRO | Yes |
| SCIP | 5e4a50e1-5174-4ac0-b255-60f5d9358234 |
| Noise & vibrations | |
| Sound power | 96 dB(A) |
| Sound pressure | 85 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 6.8 m/s² |
| Vibration value | 8.8 m/s² |
| Speed | |
| Free speed | 280 r/min |
| Air information | |
| Air consumption | 9 l/s |
| Max working pressure | 91 psi |
