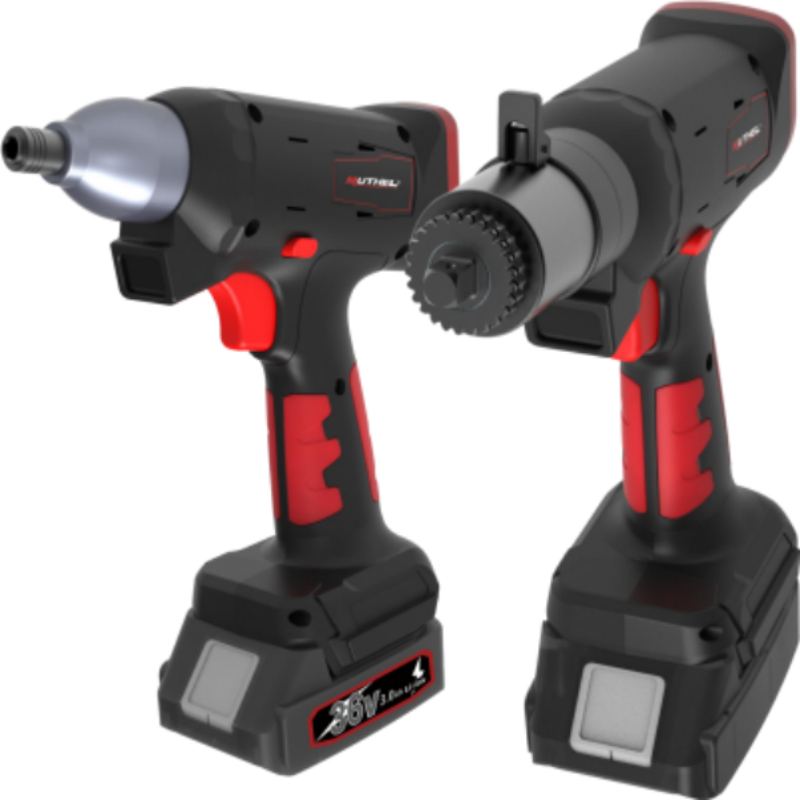

The QM-PI2 and QM-PM2 gun-type small-torque brushless torque wrenches utilize a new generation of brushless motors, carbon-free brushes, closed-loop control, and multiple tightening strategies, while meeting high-precision and high-strength requirements.

Meeting both performance and safety requirements, the QM small-torque brushless torque wrench (under 200NM) features adjustable speed and torque output, adaptable to various soft and hard environments. The QM-PI2 model, built on a high-speed platform, delivers higher angular speed for precise tightening while supporting wireless and data functions.

32 programmable presets

Adjustable speed torque wrench

High reliability and stability with multi-pole gearbox

User (operator, administrator) level management

The buzzer provides a more direct notification

Supports TorquExplore, Open, and other transfer protocols

Tighten result judgment function

closed loop sensor

high capacity lithium battery

Optional mobile module *NB

Supports bolt-pointing log recording and USB log/data reading

Compatible with TGW series controllers, supporting alarm lights and scanning guns

Digital adjustment and display of torque and wrench working status parameters

Wrench overheating temperature monitoring (some models)

Accuracy ±3% to ±7% (depending on the model and fastening parameters)

Anti-reaction force arm locking to achieve unloading function

Optional Bluetooth support and WIFI wireless functionality

Supports torque, torque + angle, and angle mode

Supports data storage and transmission

This device can store more than 50,000 pieces of information.
