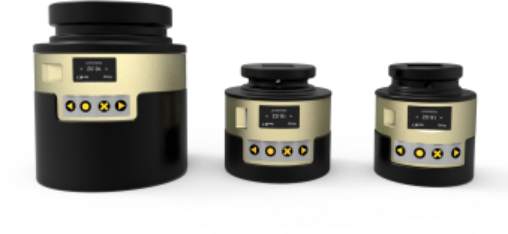

Smart Sleeve TVC Series

The high-precision sleeve-type torque sensor integrates patented technology with standard sleeves, enabling real-time torque measurement during bolt tightening. When paired with Wivor Industry's professional Bluetooth APP and Windows-based torque statistics software, it facilitates online torque verification and measurement with ±1% accuracy. The wireless torque measurement sleeve operates on low-power Bluetooth (BLE) IoT terminal software.


The high-precision sleeve-type torque sensor integrates patented technology with standard sleeves, enabling real-time torque measurement during bolt tightening. When paired with Wivor Industry's professional Bluetooth APP and Windows-based torque statistics software, it facilitates online torque verification and measurement with ±1% accuracy. The wireless torque measurement sleeve operates on low-power Bluetooth (BLE) IoT terminal software.

It can achieve the independence of torque tools and perform online measurement for workstations.

No need to change operating conditions, more accurate, can be used as a standard sleeve

Torque status display on LCD screen

Built-in rechargeable lithium battery

Verifiable Torque Measurement Improves Assembly Quality

Feedback tuning settings

Supports real-time torque curve recording

Customizable special sleeves including hexagonal and dodecagonal shapes

Torque measurement not suitable for impact wrench

The measurement accuracy of torque sensor is ±1%.

Optional WIFI module, which connects to the host computer system and MES

 management system via the Internet of Things (IoT) -W

Supports Android and Windows platforms

Records up to 100,000 data sets and downloads them to your computer

Optional Bluetooth module connects to Android software APP*-B

Supports USB log reading

The target mode can be used in conjunction with the BM series, VM series, and EBM series.
