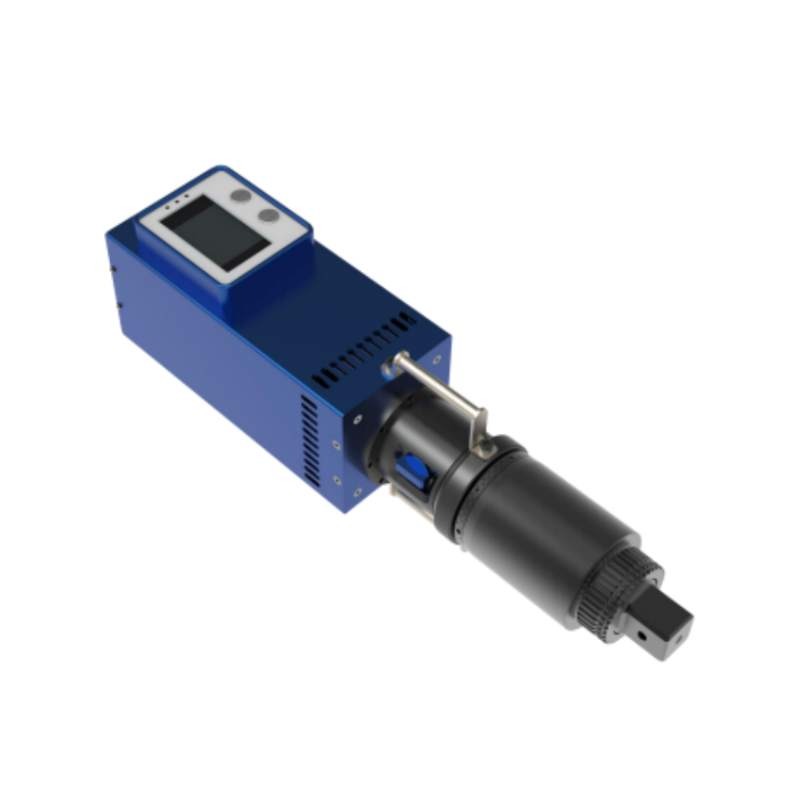

The BCS™ Servo Carriage System Series is a carriage system driven by a new generation of digital technology AC servo torque system. It consists of WIVOR's BCS controller, high-torque drive shaft, and carriage, supporting both manual and automatic carriage.

The BCS system supports turning-starting torque ranging from 500Nm to 4000Nm. The control system and drive shaft can be disassembled separately. The control system, including the drive shaft, weighs only 10-20kg. The mechanical turning part, including tooling, weighs just 50-60kg. It is suitable for maintenance of various narrow-position steam turbines and other units.

This product is patented.

Set the turntable speed

online speed variation

torque monitoring

Limit Torque Alarm and Emergency Stop

real time monitoring of turntable

Manual and automatic dual support

Supports Chinese interface

accuracy ±3%

Operation result statistics of turntable

Supports MODBUS and other protocols

Supports USB drives

Supports extended wireless functionality
