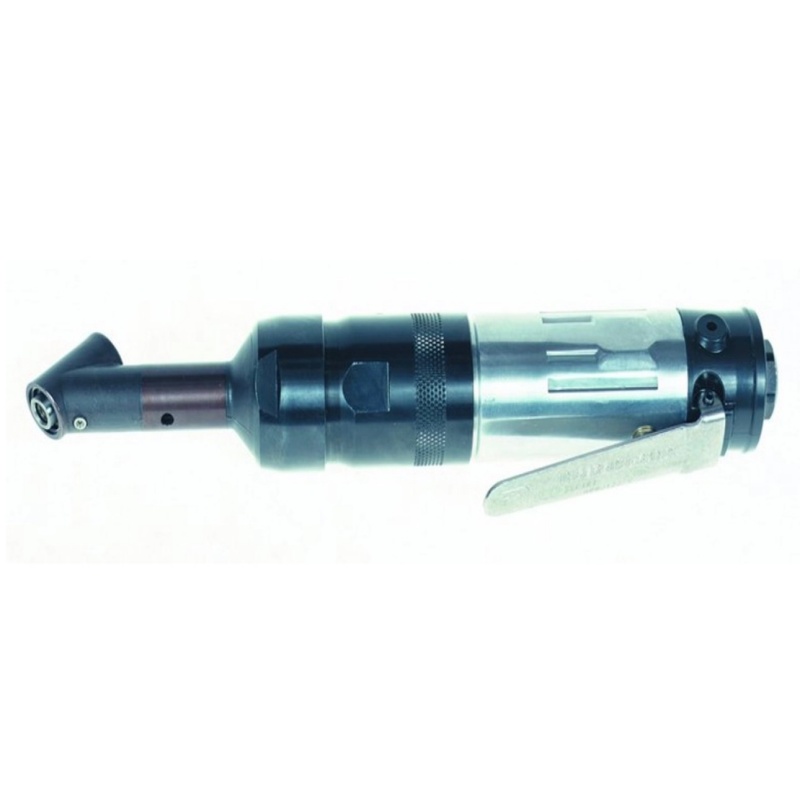

5 Series Non-Reversible Inline Air Drill
The 5 Series Inline Non-reversible drills deliver results day after day. High quality, reliable and versatile, they’ll never let you down.
- Product Details
- Technical Specification
The 5 Series Inline Non-reversible drills deliver results day after day. High quality, reliable and versatile, they’ll never let you down.
Features：
1.Durable
Made with high quality chuck, these drills are durable, long-lasting and able to withstand harsh environments.
2.Performance
With easy handling and an ergonomic design, these tools perform as well as you do, with a special small angle head for close quarter drilling.
3.User Experience
With a power-to-weight ratio optimized for user efficiency, you’ll be able to get through tasks quickly and with minimal fatigue.
| Model | Actuation | Max. Working Torque (Nm) | Max. Working Torque (in-lb) | Free Speed (rpm) | Weight with Chuck (kg) | Weight with Chuck (lb) | Length with Chuck (mm) | Length with Chuck (in) | Bit Holder Capacity (in) | Bit Holder Capacity (mm) | Side to Center (mm) | Side to Center (in) | Sound Level dB(A) | Rated Power (hp) | Air Inlet | cfm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5LK1 | Lever | 3.4 | 30.1 | 3.1 | 0.91 | 2 | 206 | 8.1 | 1/4 | 6.35 | 20.32 | 0.8 | 74.6 | 0.4 | 1/4" NPT | 16 |
| 5LL1 | Lever | 4.5 | 39.8 | 2300 | 0.91 | 2 | 206 | 8.1 | 1/4 | 6.36 | 20.32 | 0.9 | 72.3 | 0.4 | 1/4" NPT | 15 |
| 5LN3 | Lever | 9.01 | 79.7 | 1000 | 1.5 | 3.3 | 239 | 9.4 | 3/8 | 9.53 | 20.32 | 0.8 | 75.6 | 0.4 | 1/4" NPT | 15 |
