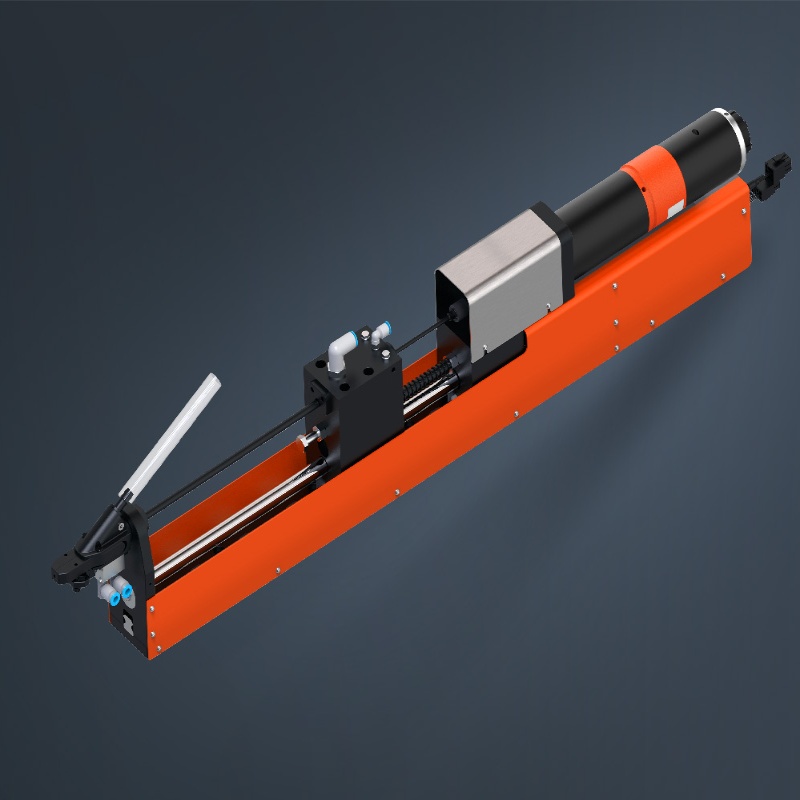

The Electric Tightening Module uses electric drive to replace the traditional integrated tightening tool, enabling the automatic tightening process of screws. It can monitor all elements of the tightening process and is highly compatible with various special working conditions and product height differences.

Product advantages：

1.Whole process monitoring

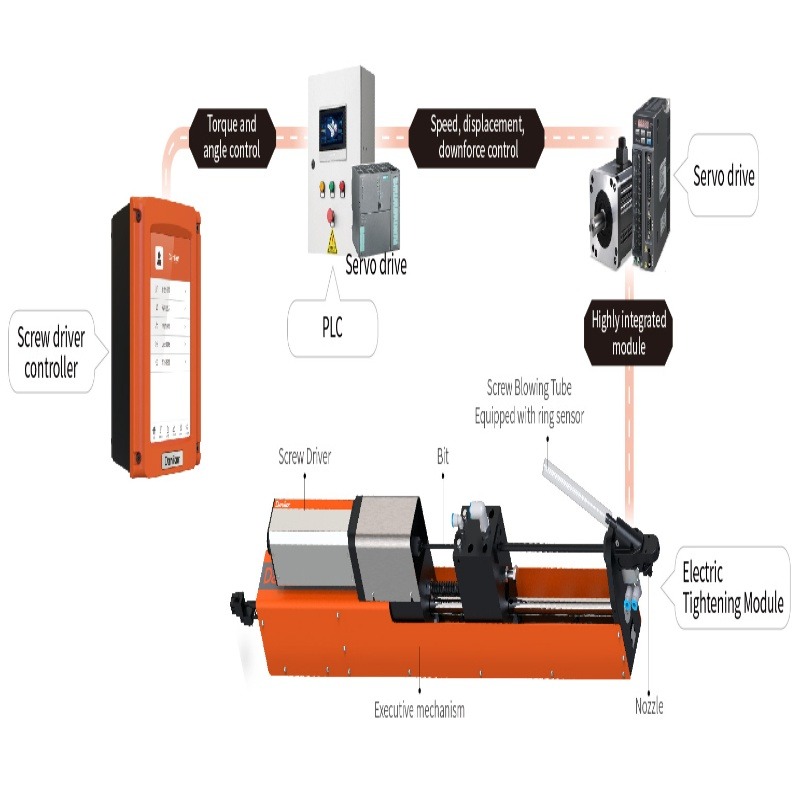

► PLC is used for information interaction to realize all-factor interactive control and real-time monitoring (speed,displacement, torque, pressure and time)；

► Combined with intelligent screw driver, real-time monitoring of abnormal tightening conditions such as floating screws, sliding teeth, missing and so on can avoid the outflow of defective products.

2.High precision control

► Accurate control of downforce: no impact during tightening to avoid screw thread damage;

► Flexible control of avoidance height: the screw suction tube can stop at any position within the travel range, with a wide range of compatibility.

3.High efficiency tightening

► Servo electric drive control, compared with the traditional module, the screw feeding speed is increased by 20%.

Green and energy saving

► The pneumatic components are reduced, the air consumption is reduced by24%, and the normal Vacuum module only needs the vacuum air and brake air provided by the customer, which contributes to the energy saving and emission reduction of the factory.
